Introduction
The Tactical Vehicle of Fire Support (TVFS) project addresses critical military needs identified through analysis of the ongoing conflict in Ukraine. Reports from the Anti-Terrorist Operation (ATO) zone and Russian military activities highlight a prolonged hybrid war requiring innovative military solutions to counteract a heavily armed and well-trained adversary.
Ukraine’s military faces challenges such as enemy mobile groups employing mortar-equipped trucks, ambush tactics, and advanced heavy weaponry, including tanks and artillery. The TVFS is designed as a direct response to these threats, offering enhanced capabilities for tactical superiority in diverse combat scenarios.
Purpose of the TVFS
The TVFS is engineered to perform a wide range of critical combat tasks, including:
- Neutralizing enemy anti-tank personnel in urban, field fortifications, and rugged terrains.
- Countering mortar, grenade launcher, and sniper attacks, as well as enemy ambushes.
- Engaging lightly armored targets, clusters of vehicles, and field fortifications.
- Combatting single tanks, combat vehicles, helicopters, and UAVs.
- Conducting reconnaissance and deep raids into enemy territory.
- Supporting and protecting troop convoys on the frontline.
Design Features
The TVFS is based on a modular and robust design to maximize adaptability, firepower, and crew protection.
-

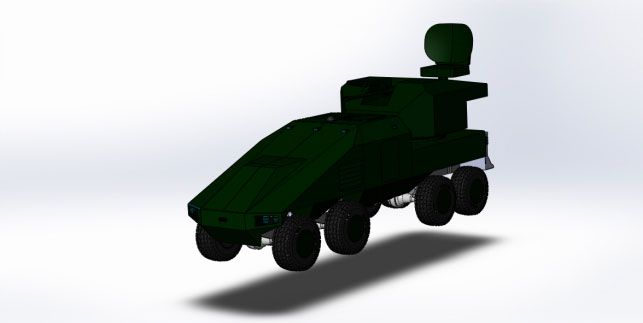

- Tactical Fire Support Vehicle
-

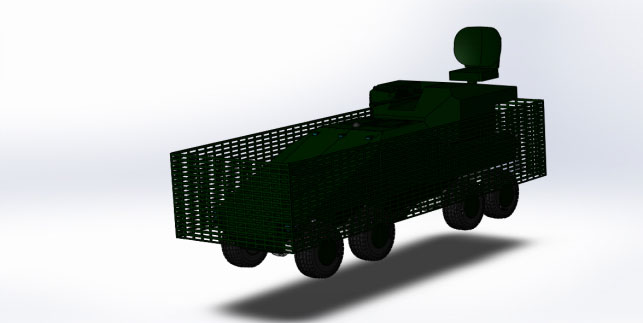

- Tactical Fire Support Vehicle
-
- Tactical Fire Support Vehicle Dimensions
Chassis and Mobility
- Four-axis wheeled chassis: Bullet-resistant wheels ensure adaptability to various terrains and high survivability.
- Chassis options: Initial designs use a KrAF 8×8 platform with a Cummins 400 hp turbo-diesel engine and automatic transmission.
- Maximum speed: 90 km/h on highways; range up to 700 km.
Armament
The TVFS offers an unmatched arsenal for tactical engagements:
82mm Automatic Mortar:
- Type: 2B9 “Cornflower” with modified auto-loading.
- Rate of fire: Up to 100 rounds/min.
- Effective range: 4,200–5,000 meters.
- Special features: Barrage capabilities to neutralize enemy ambushes in wooded or camouflaged areas.
23mm High-Speed Automatic Cannon:
- Effective range: Up to 3,500 meters.
- Ammunition: 600 shells.
- Features: Dual-axis stabilization for precision firing on the move.
ATGM System:
- Types: “Stugna” or “Skif.”
- Guidance: Four missiles with advanced targeting systems.
- Range: Up to 5,500 meters with pinpoint accuracy.
Automated Targeting System:
- Integrates with fire control for rapid identification and engagement.
Crew Safety and Armored Protection
- Armored Capsule:
- Houses the three-member crew: commander, driver-mechanic, and gunner-operator.
- Enhanced protection with a 100mm corundum-filled gap between the capsule and main armor to dissipate kinetic energy and cumulative charges.
- Ballistic Protection: Safeguards against small arms fire and shrapnel.
- Self-digging capabilities: Enhances stability during firing and provides self-recovery options.
Advantages
The TVFS provides unparalleled firepower and survivability on the battlefield. Key features include:
- Large ammunition capacity for prolonged engagements.
- Automated weapons systems: Reduces crew exposure and enhances operational efficiency.
- Modular platform: Allows for future upgrades and integration of foreign weapon systems, expanding export potential.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum weight | 25,000 kg |
| Crew | 3 (commander, driver, gunner) |
| Engine | 400 hp diesel |
| Transmission | Automatic |
| Speed | 90 km/h |
| Range | 700 km |
| Armament | 82mm mortar, 23mm cannon, ATGM system |
| Fire Control System | Automated targeting |

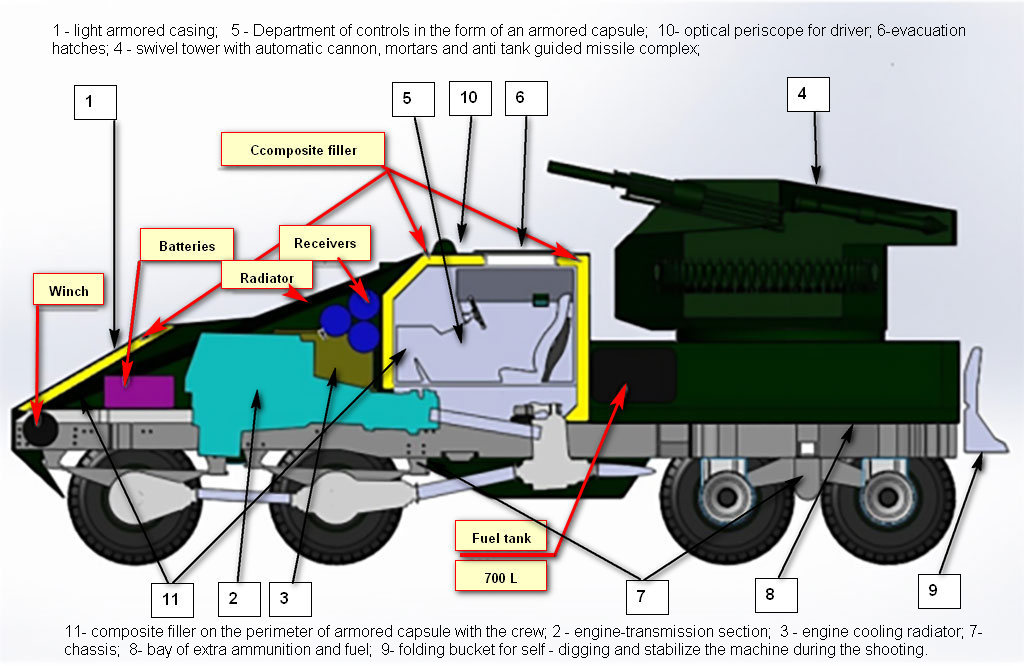

General view of Tactical Vehicle of Fire Support
Conclusion
The Tactical Vehicle of Fire Support represents a groundbreaking advancement in military technology for Ukraine. Its innovative design, modular construction, and superior firepower make it an essential asset for ensuring tactical superiority in modern warfare.
For additional details, please contact Us.
